MC10XS3412CHFKR2 NXP Semiconductors
Part Number: MC10XS3412CHFKR2
MFG: NXP Semiconductors
Pieces: 1,200
DC: 2221
Description: Power Switch/Driver 1:1 N-Channel 24-PQFN (12×12)

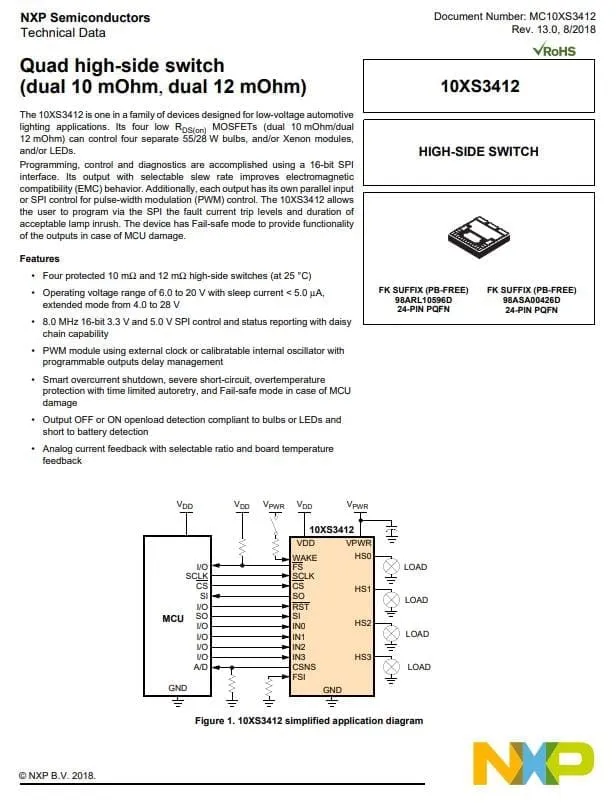

The 10XS3412 is one in a family of devices designed for low-voltage automotive lighting applications. Its four low RDS(ON) MOSFETs (dual 10 mOhm/dual 12 mOhm) can control four separate 55/28 W bulbs, and/or Xenon modules, and/or LEDs.
Programming, control and diagnostics are accomplished using a 16-bit SPI interface. Its output with selectable slew rate improves electromagnetic compatibility (EMC) behavior. Additionally, each output has its own parallel input or SPI control for pulse-width modulation (PWM) control. The 10XS3412 allows the user to program via the SPI the fault current trip levels and duration of acceptable lamp inrush. The device has Fail-safe mode to provide functionality of the outputs in case of MCU damage.
